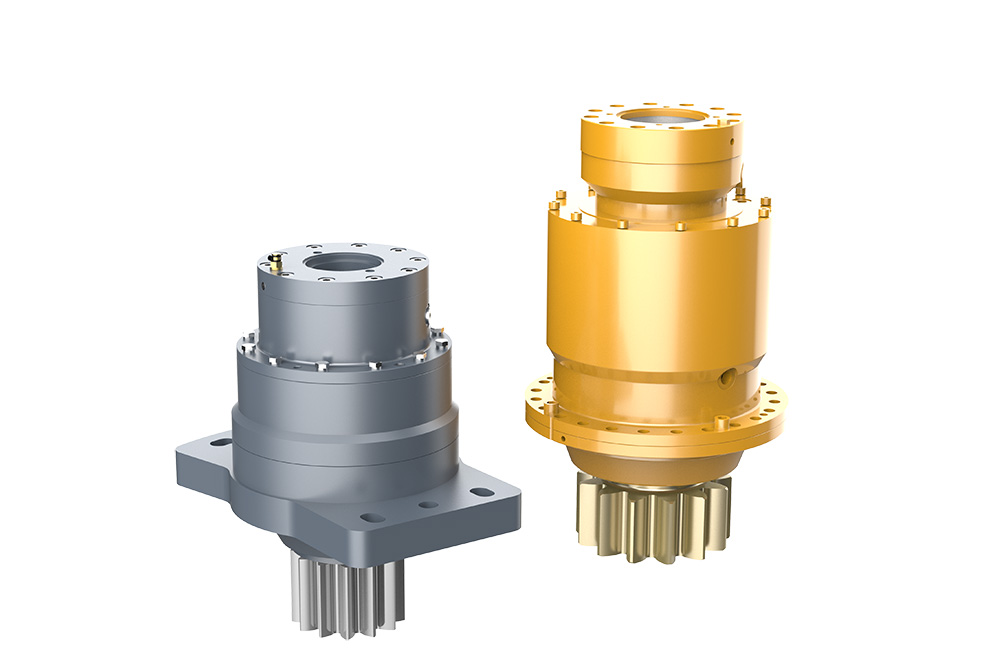

Crane rotary gear reducer is used in truck cranes and crawler cranes.

Product parameters

Reduction ratio: 103.6

Maximum input torque: 100.4N.m

Maximum input speed: 3600rpm

Maximum output torque: 10400N.m

Maximum output speed: 34.74rpm

Refueling volume: about 5L

Product characteristics/advantages

1. The gear adopts high-quality low-carbon alloy steel carburizing and quenching treatment, which has strong bearing and wear resistance;

2. The piston sealing part is specially processed to improve the sealing and wear resistance, and with the star sealing ring, the overall sealing effect is good;

3. The gear is designed according to the working conditions of the whole machine, and the meshing is tight, the transmission error is small, and the noise is low.

technical requirements

When the user installs the motor, the motor stop adopts the input steering and output steering of the "O" ring sealing gear reducer of φ 97.5 * φ 3.55;

and the gear reducer mounting flange The machining plane diameter of the rack connected to the flange is not less than the diameter of the bare leakage of the fixed thread hole of the φ 320 to be threaded.
